How to Test a Game Controller Before Replacing It

A controller can feel broken for many reasons. A weak cable, low battery, wrong input mode, game setting, worn stick, or unstable wireless connection can all create missing inputs. A controller tester helps you check the actual signal before buying a replacement. With a few simple tests on Windows, a browser, or a phone, you can find out if the problem comes from the controller, the connection, or the game setup.

When Should You Test a Game Controller?

Test your controller when the same problem appears twice in normal play. A single bad match or one strange menu input does not prove the controller is failing. Games can use different sensitivity curves, aim settings, trigger thresholds, and deadzones, so a clean test outside the game gives you a better first answer.

Use a controller tester when you notice:

• Your camera moves while your thumb is off the stick
• A character walks without input
• A jump, reload, dodge, or attack button misses presses
• A racing trigger feels uneven during throttle or braking
• The D-pad sends the wrong direction in menus
• A fighting game input comes out twice
• Bluetooth feels late compared with wired play
• The controller works in one game and fails in another

The goal is simple: confirm if the controller is sending clean input. If the tester looks normal, the issue may sit in game settings, button mapping, wireless pairing, or platform support. If the same fault appears in the tester and in gameplay, you have stronger evidence of a real controller problem.

Testing is also useful after a drop, after cleaning, after long storage, or before keeping a used controller. A quick gamepad checker can save you from replacing a controller that only needed a new cable, fresh pairing, or a mode switch.

How to Use a Gamepad Tester on Windows and Mobile

Use a simple testing flow before making a decision. First, check if the system recognizes the controller. Then check the buttons, triggers, sticks, and connection mode. After that, test one or two games that normally show the problem.

Test With the Windows Game Controllers Panel

Windows includes a basic controller test panel that can show buttons, joystick axes, and trigger behavior. It is a good first step for PC players because it checks if the controller is visible to the system before you open a game.

Follow these steps:

1. Connect the controller by USB, 2.4GHz dongle, or Bluetooth.

2. Press Windows + R.

3. Type joy.cpl.

4. Select the controller from the list.

5. Open Properties.

6. Press each button one at a time.

7. Move both sticks slowly, then rotate them in a full circle.

8. Pull each trigger from rest to full press.

A windows controller tester can confirm basic input, but it may not show every advanced feature. Some controllers report input differently depending on XInput, DirectInput, Bluetooth mode, or wired mode. If the controller works in a game but looks incomplete in the panel, test again with a browser tool before judging the hardware.

If wired mode fails, check the USB cable. Some USB cables only charge and do not carry data. Use a data-capable cable, try another port, and avoid loose hubs during testing. If the controller still does not appear, change the controller’s input mode or reconnect the 2.4GHz dongle.

Use a Browser-Based Gamepad Tester

A browser-based gamepad tester is useful because it shows live input without installing software. It can display face buttons, bumpers, triggers, stick clicks, joystick axes, and D-pad input. It is also handy when you want to compare wired, Bluetooth, and 2.4GHz behavior on the same screen.

Use it like this:

1. Connect the controller before opening the tester page.

2. Press a face button to wake the controller.

3. Reload the page if the controller does not appear.

4. Press every button and watch the on-screen response.

5. Move each stick slowly in all directions.

6. Leave the controller untouched for 30 to 60 seconds.

7. Watch for drifting axis values or moving stick dots.

Browser detection can vary by browser, operating system, and controller mode. One browser may show the controller clearly while another may miss a trigger or label buttons differently. That does not always mean the controller is bad. It means you should test in another browser or connection mode before drawing a final conclusion.

A browser tool can help compare input consistency, but it should not be treated as a perfect controller latency tester. True input delay includes the controller, connection, device, game engine, frame rate, display, and wireless environment. Use browser readings to spot major differences, missed inputs, and unstable behavior.

Test With a Game Controller Tester App on Mobile

Mobile players need to test both pairing and game support. A controller can connect to a phone and still fail in a specific game because of layout, mode, or app compatibility. A mobile gamepad tester can show if the phone receives button presses, D-pad directions, joystick axes, and trigger input.

A practical mobile test includes:

• Pairing the controller in system settings
• Opening a game controller tester app
• Pressing each face button, bumper, trigger, and stick button
• Moving both sticks in a slow circle
• Checking if the phone reads both triggers correctly
• Testing a supported game after the app check

Some mobile controllers use different modes for cloud gaming, native mobile games, tablets, or handheld layouts. If a tester app shows clean input but a game does not respond, the game may need remapping or a different controller mode.

For phone-mounted controllers, also check physical fit. A case, camera bump, USB-C alignment issue, or loose clamp can affect connection. If the controller disconnects when the phone moves, the problem may be mechanical contact rather than stick or button failure.

How to Check Buttons, Triggers, and Joystick Movement

A reliable test should cover every input in a fixed order. Buttons, triggers, and sticks fail in different ways, so testing them separately makes the result clearer. A controller tester gives you the cleanest view when you press one input at a time.

Use this order:

Input Area	What to Test	What a Problem Looks Like
Face buttons	A, B, X, Y or matching layout buttons	Missed press, double press, delayed release
D-pad	Up, down, left, right, diagonals if supported	Wrong direction, stuck input, weak diagonal
Bumpers	Left and right shoulder buttons	Input only works with hard pressure
Triggers	Full travel from 0 to 100 percent	Jumping values, partial lock, slow return
Stick clicks	Pressing L3 and R3	No click input or repeated input
Joysticks	Center, edges, circular movement	Drift, rough movement, missing range

For platformers, button timing matters. If jump input misses in the tester, it will feel worse during fast sections. For shooters, right-stick smoothness and trigger consistency matter most. For racing games, analog trigger travel is important because throttle and braking depend on partial input. For fighting games, D-pad accuracy and clean button release can affect combos.

Move each stick in two ways. First, move it slowly to reveal dead spots or rough zones. Then move it at normal gameplay speed to see if the input jumps or snaps. A joystick tester view should show smooth movement across the full range.

Do not ignore release behavior. A button that activates correctly but releases late can still cause trouble. A trigger that stays at 5 percent after release may affect racing, aiming, or menu selection. Good input means the press and release both read cleanly.

What Test Results Reveal About Stick Drift and Deadzones

Stick drift appears when a joystick sends movement while it is sitting untouched. In a controller tester, you may see the stick dot sit away from center, axis numbers flicker too much, or camera-style movement appear without input.

Small center movement is common on many analog sticks. Most games use a deadzone to ignore tiny input near the center. A larger issue appears when the stick moves outside that deadzone or keeps changing after the controller is placed on a flat surface.

Use this reading method:

Test Result	What It Usually Means	Next Step
Slight center flicker	Normal analog variation	Test in a game before changing settings
Resting point slightly off center	Deadzone may hide it	Adjust only if aiming feels delayed
Stick moves by itself in tester and game	Likely stick drift	Clean, calibrate, then retest
Stick cannot reach full edge	Calibration issue or worn mechanism	Recalibrate and test another device
Stick jumps during slow movement	Sensor or mechanical issue	Compare wired and wireless modes
Stick snaps back past center	Possible rebound or worn stick behavior	Test in a game with low deadzone

Deadzones can help hide small drift, but they also change control feel. If the deadzone is too high, aiming can feel heavy. If it is too low, drift becomes visible. A good joystick tester helps you find the balance before changing in-game settings.

If a stick shows heavy drift in the tester, raising the deadzone may only cover the symptom. It does not repair the part. When drift appears across multiple devices and connection modes, the stick hardware is likely the main cause.

How to Compare Wired, Bluetooth, and 2.4GHz Input

Connection mode can change the feel of the same controller. Wired mode is usually the easiest baseline because it removes wireless pairing and battery variables. 2.4GHz dongle mode is often built for stable wireless play. Bluetooth is convenient for phones, tablets, handheld devices, and casual gaming setups, but it can be more sensitive to pairing quality and wireless traffic.

Use the same controller tester for each mode so the comparison stays fair.

Connection Mode	Best Use Case	What to Watch
Wired	PC testing, stable input checks, low-battery troubleshooting	Bad cable, loose port, charge-only cable
2.4GHz	PC or docked play with wireless freedom	Dongle distance, blocked USB port, interference
Bluetooth	Mobile, tablet, handheld, casual play	Pairing errors, battery level, input delay

Test each mode with a full battery. Place the 2.4GHz dongle close to the controller. Remove old Bluetooth pairings before pairing again. Keep the same game, same tester, and same input sequence for every test.

Look for patterns:

• Wired works, Bluetooth fails: check pairing, battery, and device support.
• Wired works, 2.4GHz fails: move the dongle closer and avoid blocked ports.
• 2.4GHz feels better than Bluetooth: use the dongle for PC gaming when possible.
• All modes show the same button or stick fault: the hardware is probably the issue.
• Browser input looks normal, but gameplay feels late: check game settings, frame rate, and display mode.

A controller latency tester can help compare rough input behavior, but it cannot prove the full delay you feel on screen. The most useful result is consistency. If one mode drops inputs or feels unstable while another mode stays clean, the connection setup needs attention.

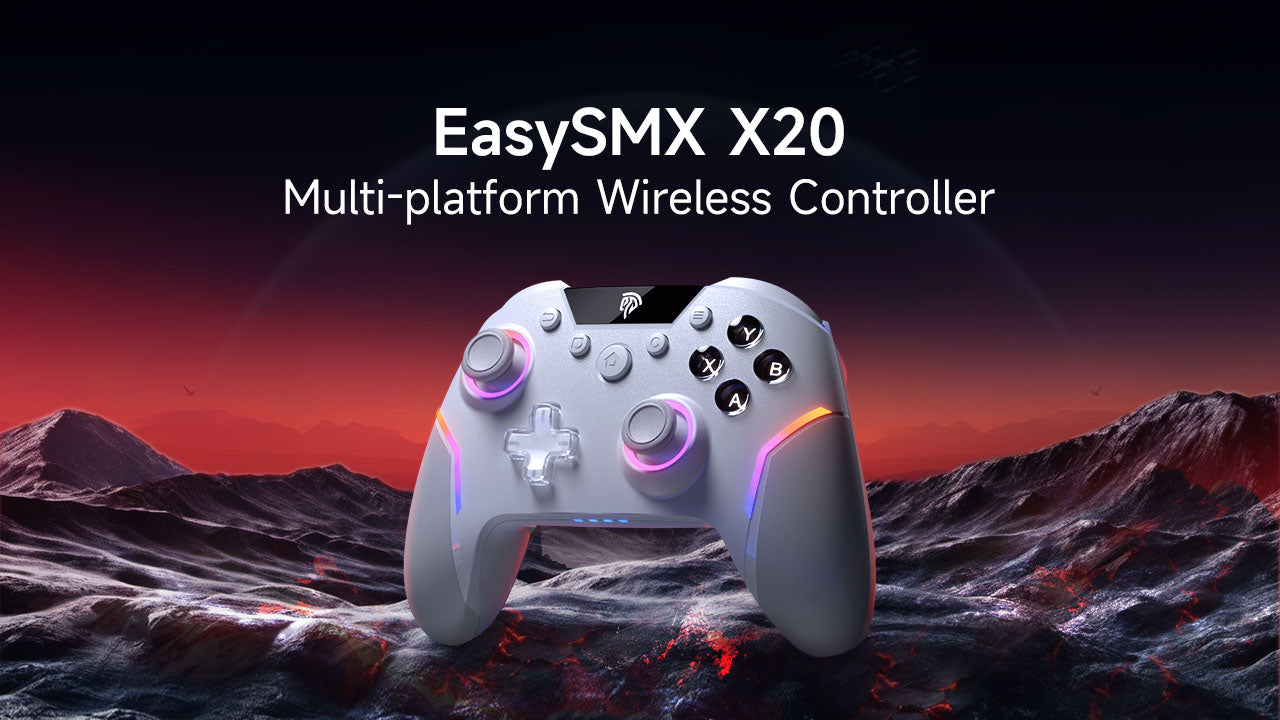

The test result also shows which replacement features matter. For example, the EasySMX X20 supports wired, 2.4GHz, and Bluetooth play and uses Hall Effect sticks, so it fits players who want to test and use different connection modes across PC, Switch-style setups, and mobile devices.

Replace Your Controller When Testing Shows a Hardware Problem

Replacement makes sense when the same fault appears in several tests, games, connection modes, or devices. Before buying a new controller, charge it fully, try a data-capable USB cable, remove old Bluetooth pairings, update firmware, reset remaps, and retest. If stick drift returns, buttons miss presses, triggers cannot reach full input, or wired, Bluetooth, and 2.4GHz modes show the same issue, the hardware is likely failing. Use your controller tester results to choose a better match, such as Hall Effect or TMR sticks, smoother triggers, and stable wired or 2.4GHz support.

FAQs

Q1. Do I Need to Update Controller Firmware Before Testing?

Yes, check firmware if the controller supports updates. Test once before updating so you know the original problem. After the update, test again with the same cable, mode, and game. A firmware update can fix mapping, pairing, or input reporting issues.

Q2. Why Is My Controller Detected as a Keyboard?

Some controllers use special input modes for mobile, cloud gaming, or older PC support. Change the controller mode, reconnect it, and test again. If the gamepad checker still shows keyboard-style input, check the manual for the correct PC or controller mode.

Q3. Can Vibration Affect Controller Test Results?

Yes, vibration can make a worn stick or loose connection easier to notice. Run the input test with vibration off first. Then test in a game with vibration on. If problems appear only during vibration, the issue may involve internal wear or connection stability.

Q4. How Often Should I Test My Game Controller?

Test it when input feels wrong, after a drop, before a return window closes, or before competitive play. Regular casual testing is not required. A 2-minute check every few months can help spot early drift, weak buttons, or trigger issues.

Q5. Why Does My Controller Work in Menus but Fail During Gameplay?

Menus often use simple button input, while gameplay may rely on analog sticks, triggers, camera control, and custom mappings. Test every input separately. If menus work but gameplay fails, check game control settings, analog input, controller mode, and button remapping.
